Condor Speed Shop Harness Adapters & A/C Compatibility Guide

When you’re swapping engines across different BMW chassis, keeping factory comforts like air conditioning often takes some extra thought. That’s where Condor Speed Shop’s harness adapters come in — they simplify wiring between generations of BMW engines and chassis, keeping OEM functionality while reducing wiring headaches.

When it comes to A/C operation, not every combo works the same. Some chassis–engine pairings need an additional module to get the compressor running. Others only need the module if you want to protect the compressor from over-revving.

Below is a complete breakdown of which combinations require the Condor A/C Module and which do not.

1. When the A/C Module Is Required for Any Operation

If you’re running one of these chassis with any of the engines listed below, the Condor A/C Module is mandatory for proper compressor function.
Without it, your A/C will not engage.

Compatible Chassis

• E34 (X20 25-Pin)
• E36
• Z3 (X20 25-Pin)
• E39 (MS41.0)
• E39 (MS41.1)
• E31

Compatible Engines

• M52TU
• M54
• S54 (MSS54/HP)
• M62 (ME5.2.1)
• M62TU
• S62
• N52 (MSV70)
• N52N (MSV80) Must use N52 clutch-style compressor
• N54 (MSD8x) Must use N52 clutch-style compressor
• S65 Must use N52 clutch-style compressor
• M60
• M62 (ME5.2)

Note: Any chassis listed above can be paired with any engine from this list.

2. When the A/C Module Is Optional (for Safe RPM Control)

If your setup falls under this group, your A/C will still work without the module — but the module is recommended to maintain a safe RPM range for the compressor.
This helps prevent over-revving and extends compressor life.

Compatible Chassis

• E21
• E24
• E28
• E30

Compatible Engines

• M52TU
• M54
• S54 (MSS54/HP)
• M62 (ME5.2.1)
• M62TU
• S62
• N52 (MSV70)
• N52N (MSV80) Must use N52 clutch-style compressor
• N54 (MSD8x) Must use N52 clutch-style compressor
• S65 Must use N52 clutch-style compressor
• M60
• M62 (ME5.2)

Note: Any chassis listed above can be paired with any engine from this list.

Why the Module Matters

BMW’s engine management evolved significantly over the years.
Newer DMEs communicate compressor logic through CAN bus instead of a simple on/off signal. When mixing generations, that signal often gets lost — leaving the A/C clutch inoperable.

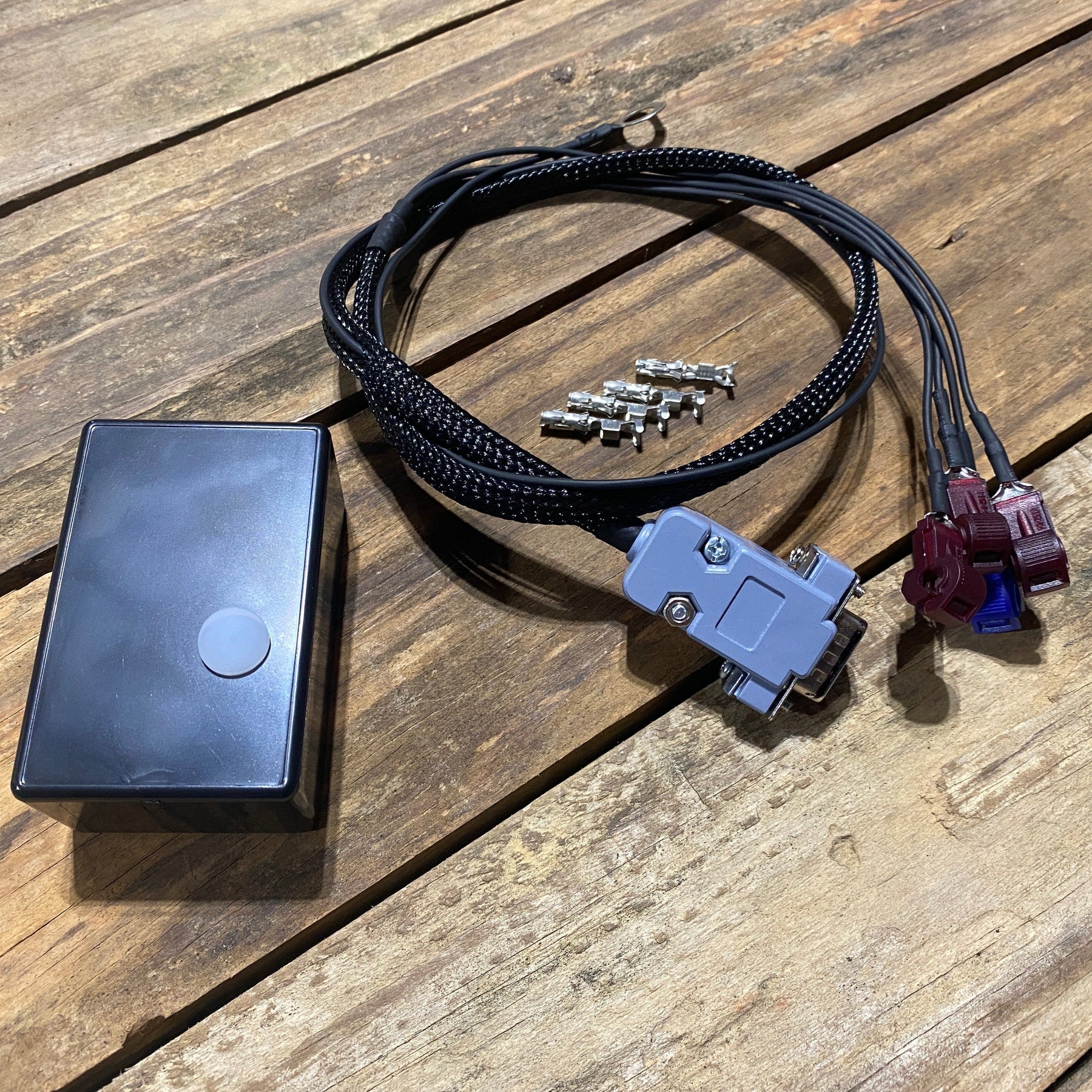

The Condor A/C Module bridges that gap. It:

• Translates A/C request signals between mismatched chassis and engine ECUs
• Ensures proper compressor clutch engagement
• Protects the compressor from unsafe RPMs in high-revving swaps

Summary

If your A/C isn’t working after an engine swap using a Condor harness adapter, check your combination against the lists above.

1. Required group: Needs the A/C Module for any A/C function.
2. Optional group: Works without it, but the module is recommended for safety.

All Condor harness adapters are plug-and-play with labeled connectors and built-in safeguards — making them the cleanest and most reliable wiring solution for your BMW swap. The A/C Module is available here.
