Complete Chassis Reinforcement Plate Combo / E46

The E46 chassis has several well-documented structural weak points, particularly at the front subframe engine mount, the rear subframe mounting points, and the rear shock mounts. These areas are subjected to repeated load from braking, cornering, drivetrain torque, and suspension movement, and can fatigue or crack over time—on both M3 and non-M cars.

We curated this Complete Subframe Reinforcement Plate Combo to make it easy to address all major subframe- and shock-related failure points on the E46 at once. This combo reinforces the front subframe carrier, rear subframe mounting points, and rear shock towers as a single, cohesive system.

At the front, the plates reinforce the engine mount pads and ball joint mounting points on the front subframe carrier—areas known to crack under increased HP loads. The engine mount pad reinforcements are intended to be welded to the underside of the front subframe, where failures most commonly originate. At the rear, the kit reinforces the chassis-side rear subframe mounting points and the rear shock mounts, helping spread load into stronger sections of the chassis.

The plates are designed to help prevent cracks from forming or to properly repair areas that have already seen damage. All plates are precision cut from 1/8" or 14-gauge steel and are intended to be welded directly into the chassis or subframe, becoming part of the structure. Professional installation is recommended.

Features:

• Reinforces major E46 subframe and shock mounting failure points
• Reinforces front subframe engine mount and ball joint mounting areas
• Reinforces rear subframe chassis mounting points
• Reinforces rear shock mounts
• Designed to allow comprehensive subframe reinforcement in a single install session
• Precision cut from 1/8" and 14-gauge steel
• Plates integrate directly into the chassis and subframes once welded

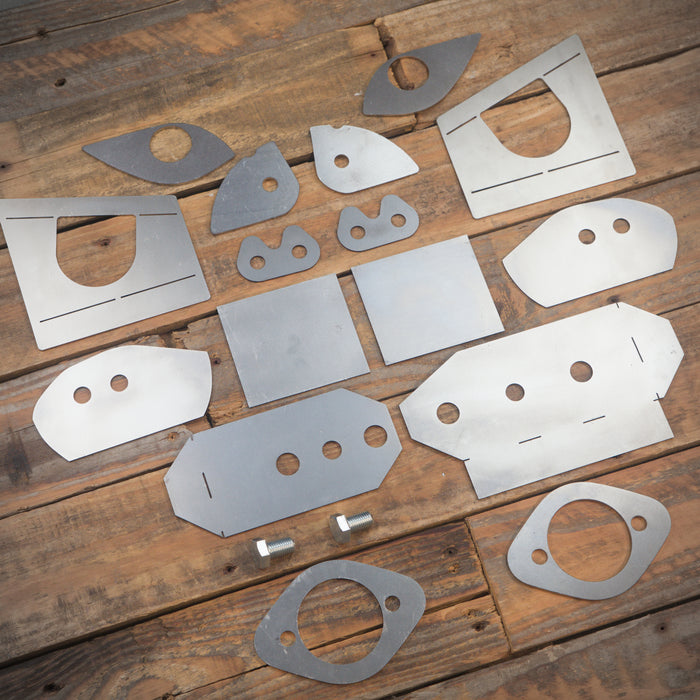

Kit includes:

• 2 front subframe ball joint reinforcement plates
• 2 front subframe engine mount reinforcement plates
• 2 engine mount bracket reinforcement plates
• 2 front subframe mounting point reinforcement plates
• 1 right rear subframe mounting point reinforcement plate
• 1 left rear subframe mounting point reinforcement plate
• 2 rear shock mount reinforcement plates
• 2 cross-member spacers
• 2 square trunk block-off plates
• 2 M12 x 1.5 bolts

Fitment:
BMW E46 (1999-2006) 323, 325, 328, 330, M3
BMW Z4 (2003-2008) 2.5, 3.0, M

Fitment: BMW E46 coupe & sedan. Requires minor modification to plates when installing on a BMW E46 convertible chassis.
