Rear Chassis Reinforcement Plate Combo / E46
Rear subframe failure is a well-documented issue on the BMW E46 chassis, and notably, the E46 M3 did not receive factory sheet metal reinforcement at the rear subframe mounting points. Over time, repeated load concentrates in these areas, leading to cracking, tearing, and expensive repairs if left unaddressed.
Our Rear Subframe Reinforcement Plate Kit is designed to address this problem directly by reinforcing the subframe mounting points on the chassis. The plates thicken the surrounding sheet metal and distribute load over a larger area, reducing stress concentration and helping prevent cracks from forming or progressing.
Precision cut from 14-gauge steel, this kit can be used both to reinforce an intact chassis as preventative maintenance and as part of a proper repair on cars already showing signs of failure. The plates are intended to be welded into the chassis, becoming part of the structure rather than a surface patch. Professional installation is recommended.
Features:
- Reinforces all rear subframe mounting points on the E46 chassis
- Thickens factory sheet metal at known failure areas
- Distributes subframe loads over a larger section of the chassis
- Precision cut from 14-gauge steel
- Suitable for preventative reinforcement or repair
- Designed for weld-in installation

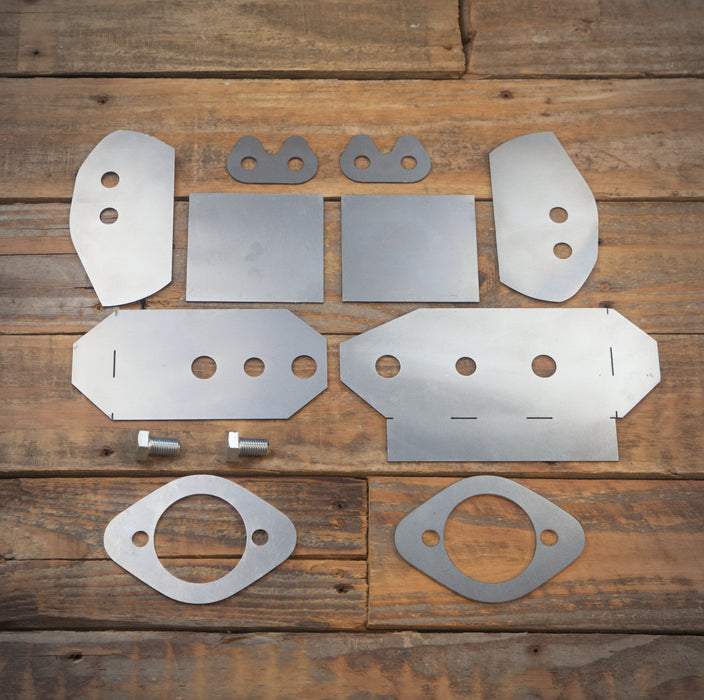

Kit includes:
- 2 front subframe mounting point reinforcement plates
- 1 right rear subframe mounting point reinforcement plate
- 1 left rear subframe mounting point reinforcement plate
- 2 cross-member spacers
- 2 square trunk block-off plates
- 2 M12 x 1.5 bolts
Fitment: BMW E46 Coupe & Sedan Convertible chassis requires minor modification to plates
