AEM 30-0300 X-Series Wideband UEGO AFR Sensor Controller Gauge

AEM 30-0300 X-Series Wideband UEGO AFR Sensor Controller Gauge

by AEM
$199.94 - $199.94
$199.94
$199.94 - $199.94
$199.94

A wideband UEGO sensor controller accurately monitors Air/Fuel ratios (AFR) during the tuning process to prevent a lean fuel mixture, which could lead to engine damage. AEM has combined its single-channel wideband UEGO controller and gauge display into one unit, uniting unsurpassed AFR accuracy and control with an easy-to-read interface.

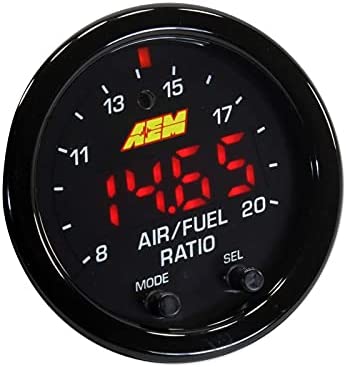

AEM’s Gauge-Type Wideband UEGO Controller features a digital LED display and sweeping LED “needle” that changes colors as AFR changes from rich to lean. The unit’s 52mm (2-1/16”) gauge housing fits in most gauge pods and can be remotely mounted virtually anywhere.

  • Ideal AFR monitoring tool for EFI and carbureted applications, and engine dynamometers
  • Does not oscillate AFR reading like narrow band sensors * No laptop required for monitoring!

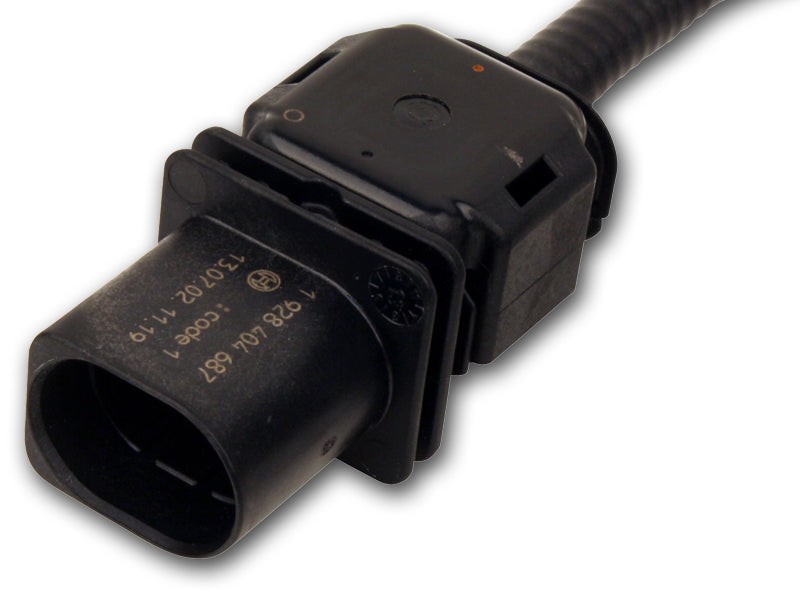

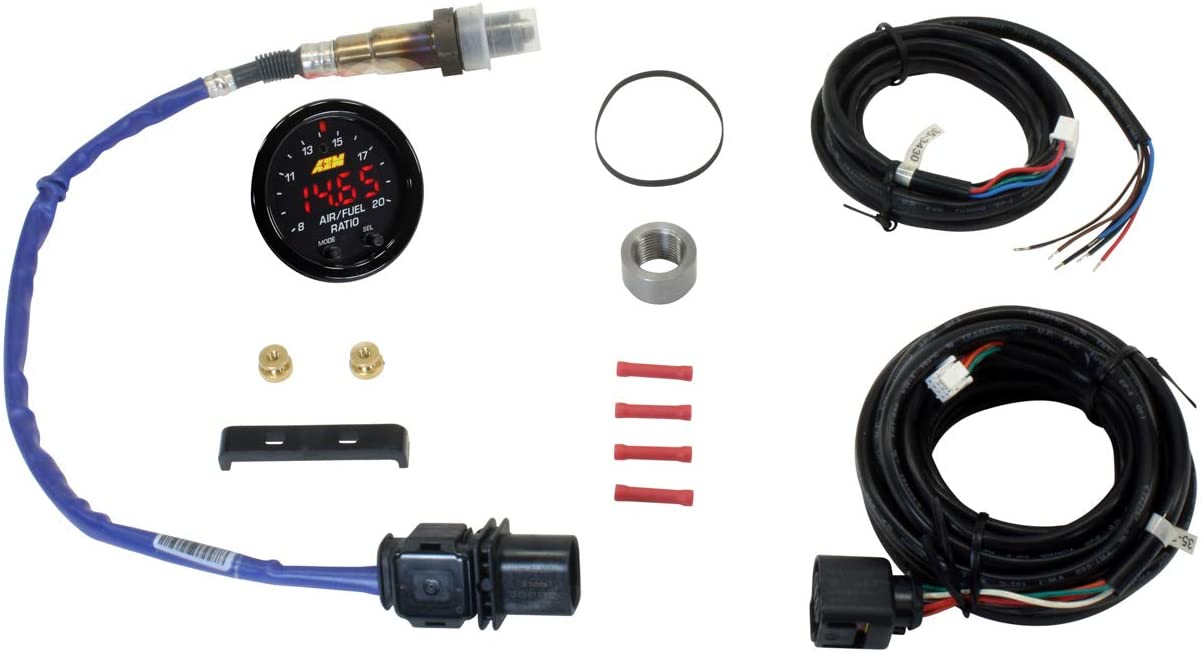

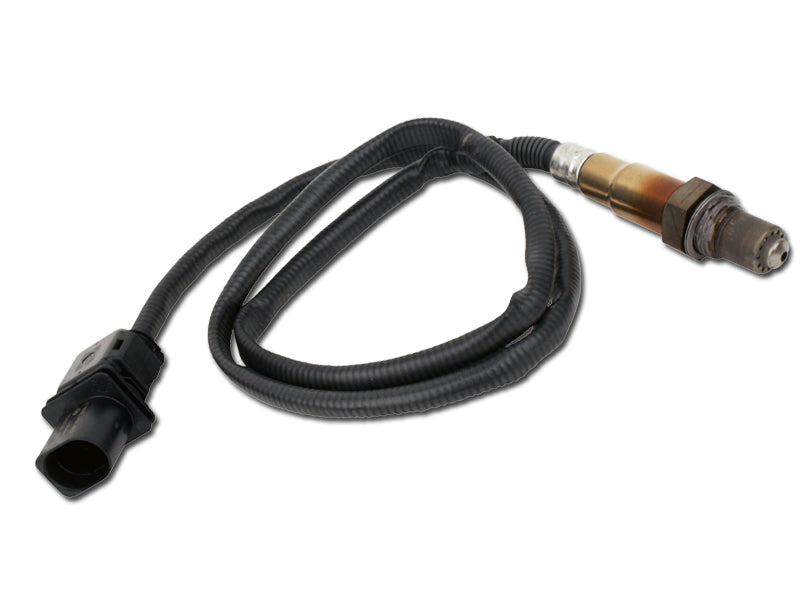

  • Bosch sensor included
  • Accurate to 0.1 AFR
  • Reads in AFR or Lambda via a switch in the back of gauge housing
  • 24 Color-coded LED display lights to provide immediate reference to engined’s air/fuel ratio (AFR) or Lambda ratio
  • The integrated three-digit display reveals AFR or Lambda in real-time
  • User-programmable 0-5v analog output included for use with data loggers and virtually any engine management system
  • Serial data stream included for output of AFR (RS 232)

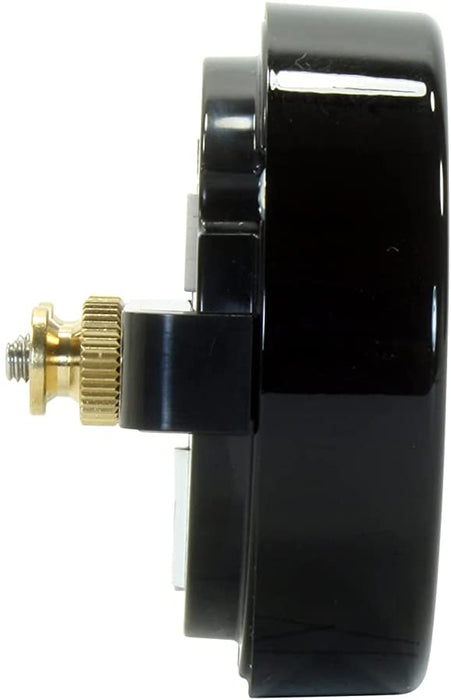

The X-Series Wideband UEGO AFR Sensor Controller Gauge (PN 30-0300) measures 2 1/16th-inch (52mm) in diameter and features a modern, visually striking faceplate and new seven-segment center display that is 87% larger than the 30-4110 AEM Wideband Gauge’s center display. This creates the perception of a larger overall gauge, but in a common 52mm size for easy mounting. Its slim depth (less than one inch overall) and ultra slim cup depth of .200-inches dramatically increase its application base and potential mounting locations.

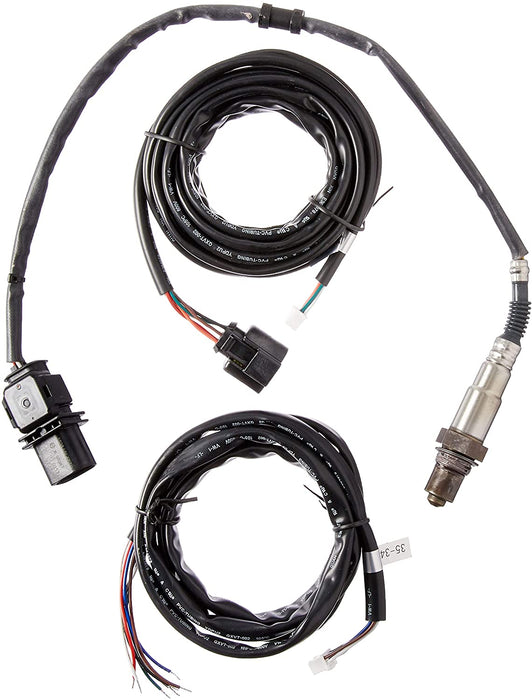

The X-Series Wideband UEGO AFR Gauge has a user-configurable display via buttons on the gauge face that allow you to change AFR values for different fuels, Lambda or O2%, change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series Inline Controllers or X-Series Controller Gauges. A black bezel and black dual-faced faceplate for air/fuel and Lambda are included, and an optional silver bezel with white dual-faced air/fuel and Lambda faceplate is available (PN 30-0300-ACC, sold separately). An Auto Dimming feature is included. Locking connectors ensure a positive connection between the harnesses and gauge and a new single board design adds to the new gauge’s durability.

The gauge includes a 0-5v and RS232 Serial Port output for feedback control and data logging, and an AEMnet (CANbus) output for data logging. AEMnet allows additional X-Series Wideband Controllers to be daisy-chained together (up to 16 cylinders) for recording AFR in multiple cylinders. It supports vehicle/system voltages up to 16V and can be used on EFI or carbureted applications, and dynamometers in applications using gasoline, methanol, ethanol, Diesel, propane, and CNG.
