Control Arm Bushings Centered-E46

$95.00

The OEM rubber control arm bushings were designed for comfort in mind... they were meant to to flex and absorb energy. That’s fine on a docile streetcar but on an all-out street/race build you want your alignment to stay constant. Condor uses UHMW for this application due to its high rigidity and low coefficient of friction allowing for minimal suspension bushing deflection.

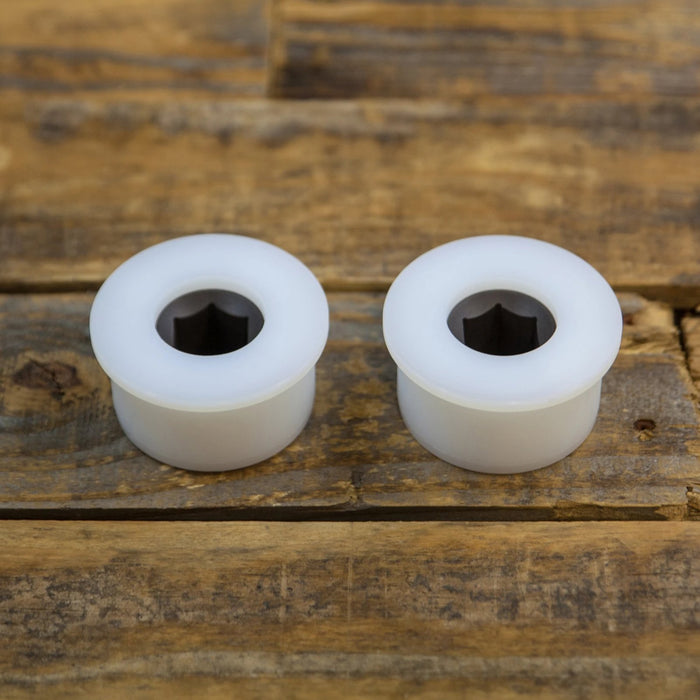

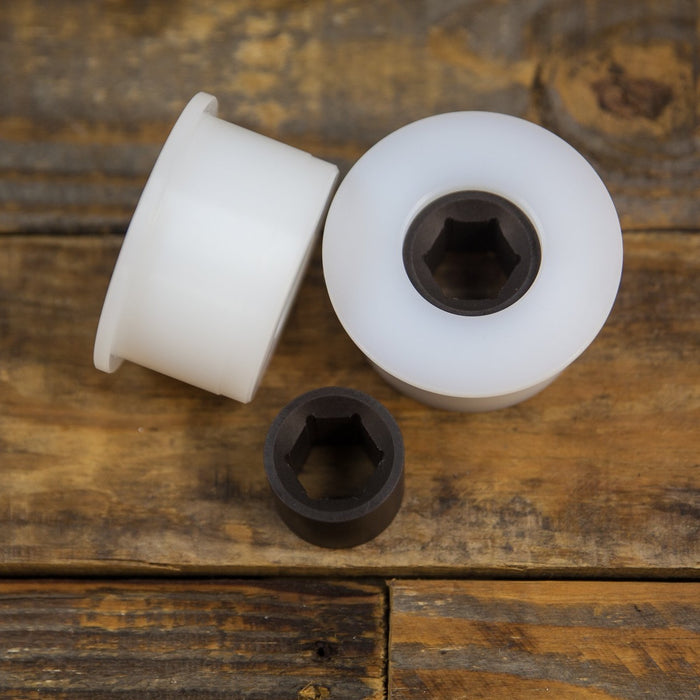

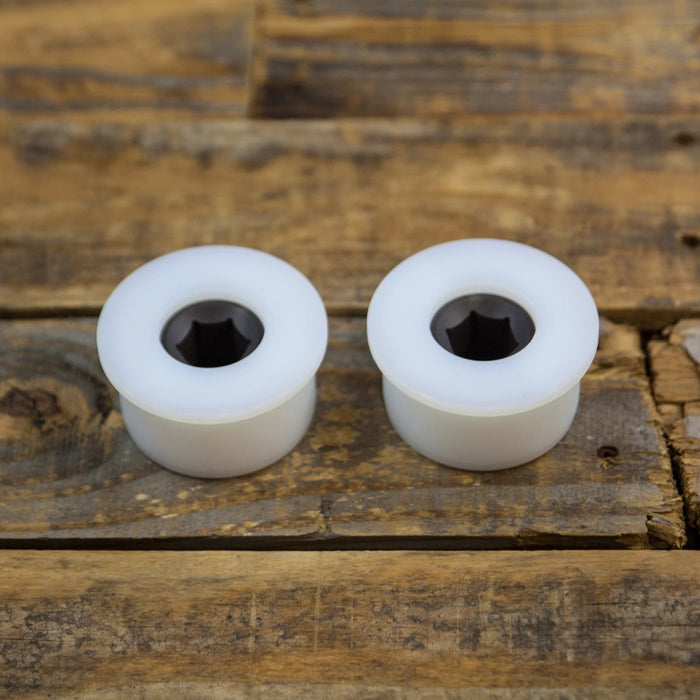

Our new E46 CABs are designed in two pieces; A UHMW bushing that presses into the stock E46 carriers, and a stainless-steel sleeve insert with a hexagonal cut-out. This stainless-steel sleeve insert presses over the hexagonal end on the E46 control arms. Once installed, this stainless-steel sleeve will rotate with the control arm within the UHMW bushing. This solution allows for a very smooth control arm movement. Our E46 solid front control arm bushings have the hole on-center, like OEM. They do not change the caster, or camber.

Don't buy control arm bushings that need their inserts replaced after a few months. Delrin inserts have been known to crack and polyurethane tends to fall apart over time, because of this we chose to use stainless steel for our inserts.

You will receive a set of 2.

Fits all E46 (1998-2007)

*Please Note: Fits 21-22MM Hex.

**Meyle makes a standard e46 control arm and a Heavy Duty control arm. The HD arms have a hex that is larger in size. These HD control arms will need to be shaved 2 mm to fit our bushings.

*CAB's can be ordered already pressed into carriers from the drop down menu.

*Does not fit Xdrive Wagon

*Please note, If you send back both of your old mount carriers/lollipops, we will refund you $20.
