Complete Chassis Reinforcement Plate Combo / E46

Original price $169.98 - Original price $169.98
Original price
$169.98 - $169.98
Current price $169.98

Our E46 complete subframe reinforcement plate combo is designed for the front subframe carrier, rear subframe and rear shock mounts on the E46 (M3 as well as Non-M). They will help prevent/repair cracked engine, front balljoint, rear subframe and rear shock mounting points on the e46 chassis. This is the optimal solution for protecting your E46 from heavy street or track use. Our reinforcement plates are precision cut from 1/8" & 14 gauge cold rolled steel. Installation requires welding. We suggest welding the engine pad reinforcements to the underside of the front subframe

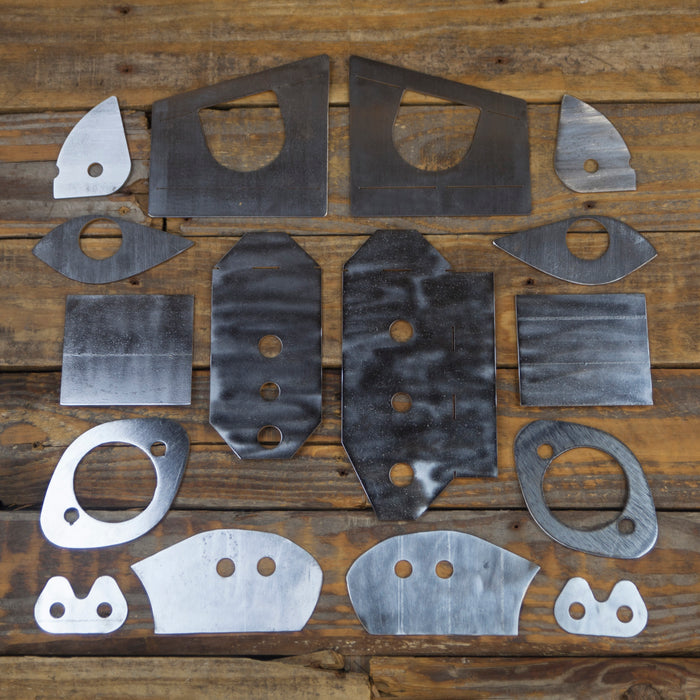

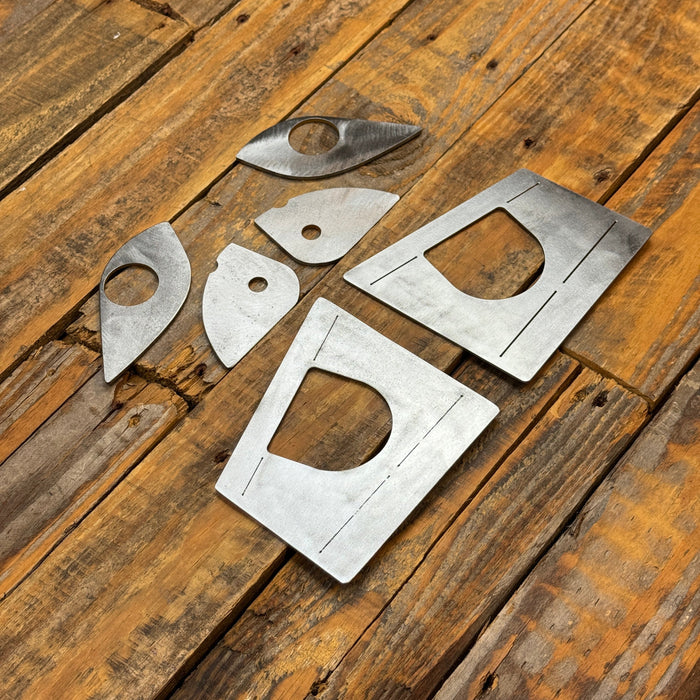

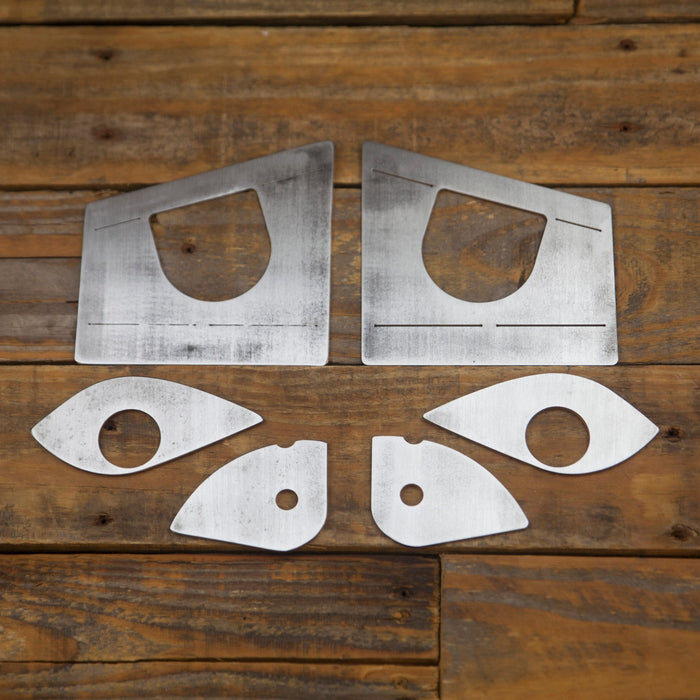

  • Two ball joint reinforcement plates
  • Two engine mount reinforcement plates
  • Two engine mount bracket reinforcement plates
  • Two front subframe mounting point Reinforcements
  • One Right rear subframe mounting point Reinforcement
  • One Left rear subframe mounting point Reinforcement
  • Two cross member spacers
  • Two square trunk block off plates
  • Two 12mm x 1.5 bolts
  • Two shock mount reinforcement plates

BMW E46 (1999-2006) 323, 325, 328, 330, M3
BMW Z4 (2003-2008) 2.5, 3.0, M

Fitment: BMW E46 coupe & sedan. Requires minor modification to plates when installing on a BMW E46 convertible chassis.
