E30 Center Hood Vent
The N15 Design E30 center hood vent was designed to bring efficiency to the cooling system while providing front downforce by evacuating high-pressure air under the hood. Both function and form were considered in the design process, and the vents complement the lines of the car. The E30 engine bay is notorious for having issues with airflow and cooling, and this vent will serve to alleviate that issue. Combine it with the outer vents for maximum efficiency.
An integrated gurney flap draws additional air from the front portion of the hood vent. The slats are beautifully contoured to conform to the curvature of the stock E30 hood, so the vent doesn’t drastically change the profile of the car. Don’t want the gurney flap? Simply zip it off with a cutoff wheel/dremel. A center support rib piece is included to prevent the slats from accidentally being bent once installed.
Water temperatures can drop as much as 15 degrees Fahrenheit on a warm day. For cars with adjustable rear wings, it may be necessary to add more angle to compensate for the additional front downforce for optimal balance.

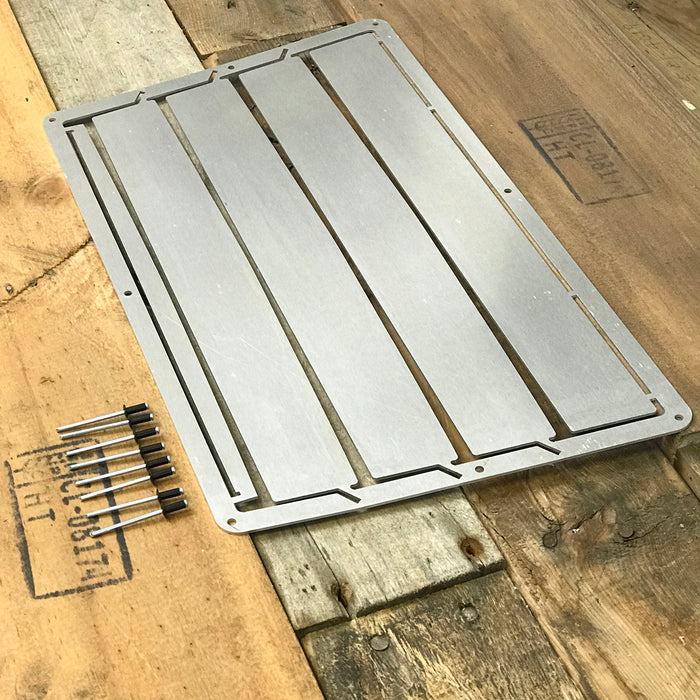

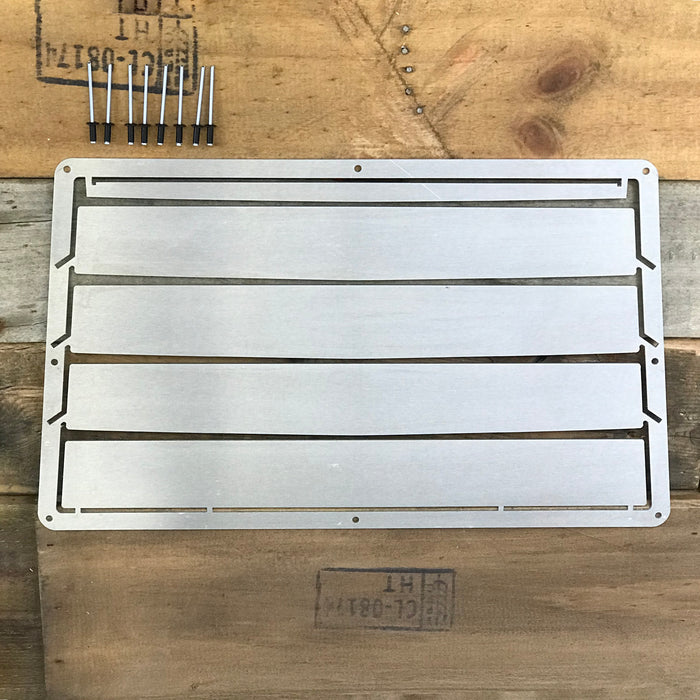

Vents ship flat and in bare unfinished aluminum. They can be bent by hand to the desired angle. They can be mounted above or below the hood, and it is recommended to paint the vents to your desired finish. Center vent is 14" wide at the widest spot by 10" tall.
- (1) E30 center hood vent
- (1) Center support rib
- Full set of installation instructions
- (8) 1/8″ aluminum pop rivets in black
- Cutting templates
Will fit all E30 models.
