Adjustable Front Endlinks - E46

$221.00

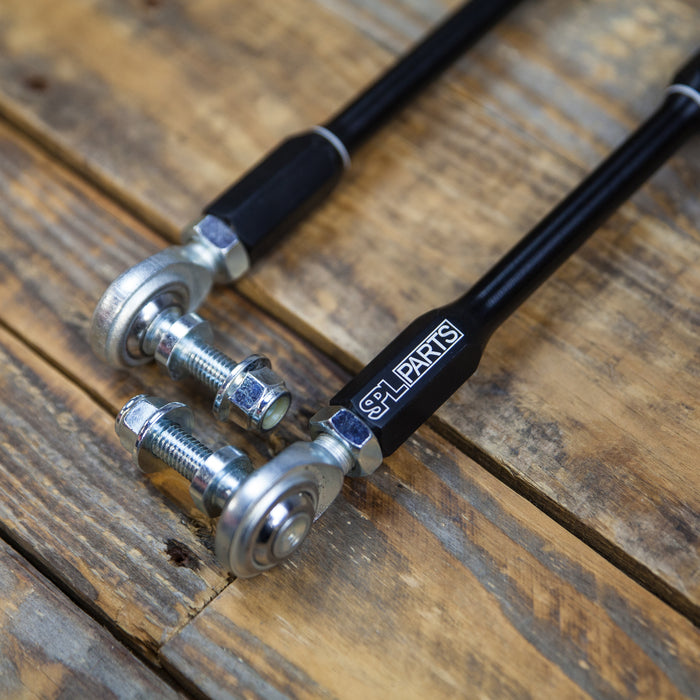

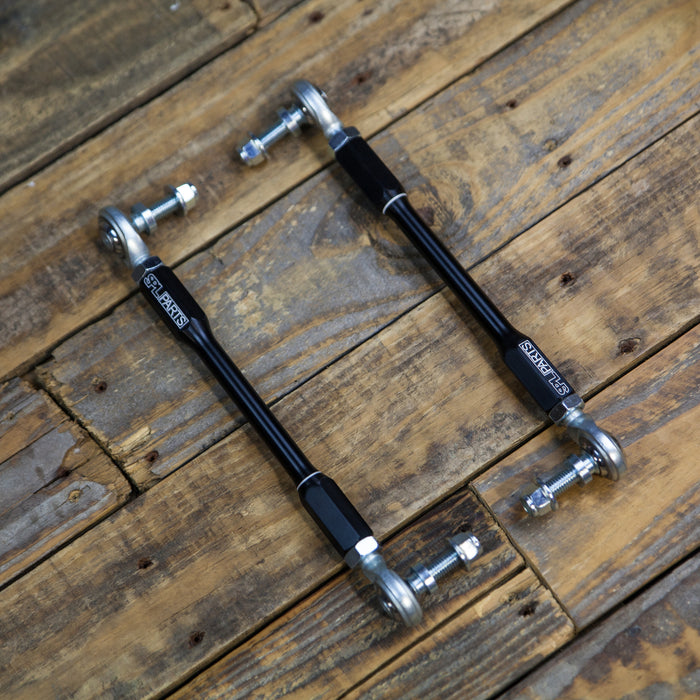

SPL Parts PRO Front Endlinks (FE) for the BMW E46 3 Series and E85/E86 Z4 chassis feature massive Teflon lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars.  Custom heat treated Chromoly High Misalignment Studs connect to the sway bar and offer extreme articulation capability (65deg) to prevent the endlink from binding when used with different adjustment holes on aftermarket sway bars.

These Endlinks are length adjustable to eliminate preload on the sway bars, which can result from uneven settling of springs or uneven suspension heights from corner weighting.  Black Anodized 6061-T6 Aluminum Turnbuckles work in conjunction with the left and right hand threaded rod ends for simple and precise adjustment.  Designed for street or race applications.

Features:

  • Black Anodized and Gun drilled 2024 Aluminum turnbuckles
  • Low friction 3 piece Teflon lined FK Heim joints/Rod Ends
  • Heat treated Chromoly High Misalignment Studs
  • Made in the USA

Fitment:
1999-2006 E46
2003-2008 E85/E86 Z4

Note:  If you have changed your OEM shocks with aftermarket shocks or coilovers, the mounting location may have moved. Please check the distance between the sway bar and the shock mount, and confirm that it is between 9.9" to 11.4". We cannot confirm fitment with aftermarket shocks and coilovers***
