Condor Speed Shop Engine Riser Kit Installation Instructions

Condor Speed Shop Engine Riser Kit Installation Instructions

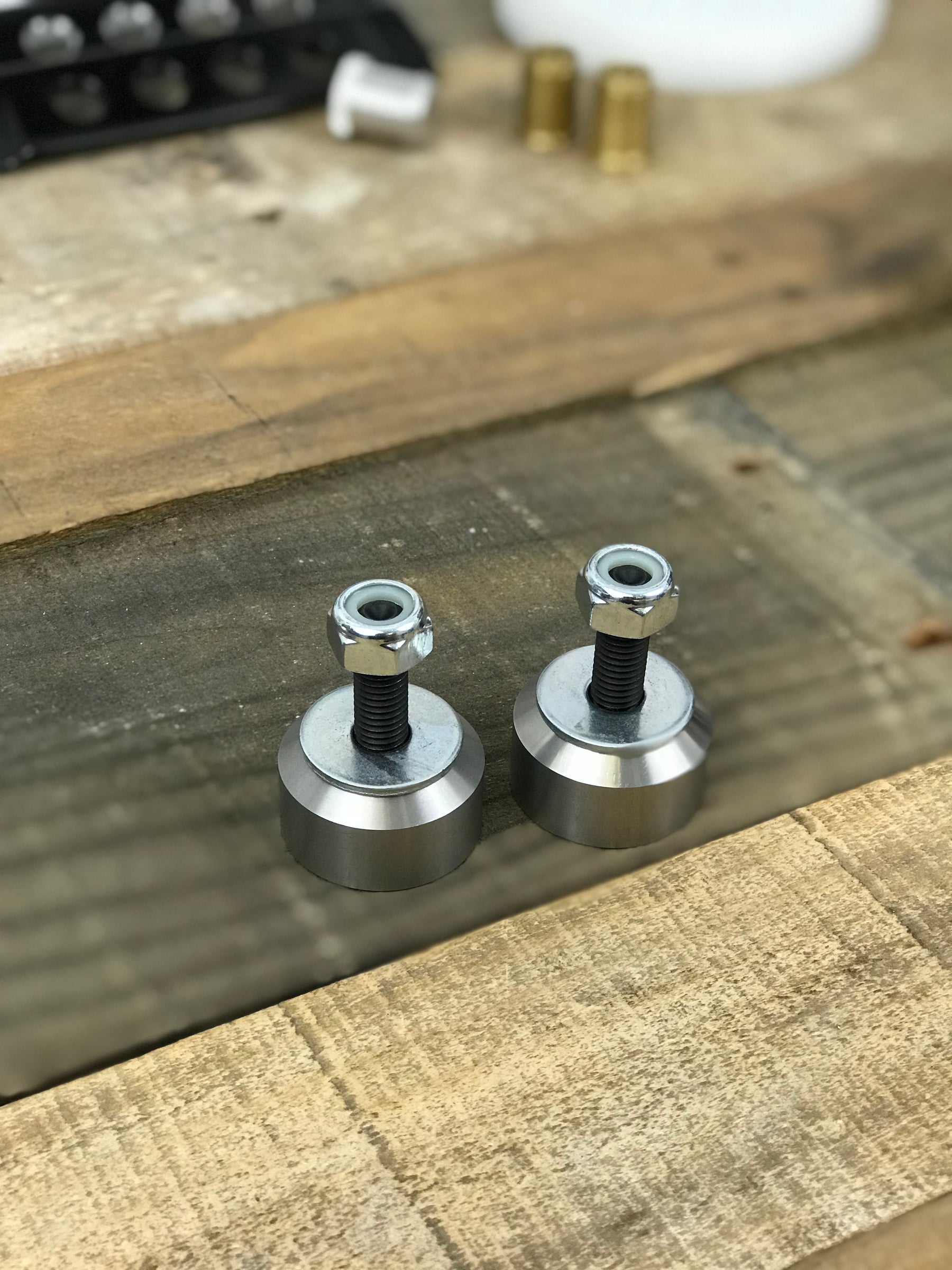

This is a guide to show you the simple steps required to install our universal engine riser kit.

1. For use with CSS engine risers.

2. Remove the nut and washer from the motor mount.

3. Cut the motor mount stud so only 10mm of stud remains. *Note that when installing on Condor m20 engine mounts, you need to take into account the thickness of your subframe before cutting the bolt. Thickness may differ depending on whether or not the subframe has been reinforced. Clean threads with a file.

4. Thread the riser onto the stud using lock-tite. Make sure it sits flush with the mount. Note that if installing on Condor m20 mounts, the bolt needs to go through the bottom of the subframe first. Mount it in place with the riser on top & install retaining locknuts.

Available for purchase here:
